Africa Twin XRV650 RD03 was produced for 2 years(1988-1989) for the following markets and of course the Japan market.
There were some minor differences between the models of these markets which we will try to summarize below.
Lights.
The headlight cowl of SW model.
For the Japan market models. A red warning light that lights up at speeds above 90 km/h.

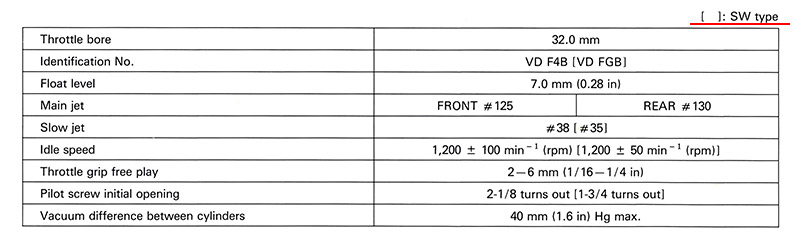

Carburator.
The changes to the Swiss market models are different Slow Jets, Front and Rear Needle Sets and Vacuum Piston.
Needle front 16131-MS8-681(Std 16131-MM9-621)
Needle rear 16151-MS8-681(Std 16151-MM9-621)
Vacuum Piston 16111-MF5-841(Std 16111-MS8-004)
"Insulator, Carburator" part differs in "restricted" models for AR, G and SW(HSQ) markets.
Standard, part No 16211-MS8-000
AR , part no 16211-MR1-710
G, part no 16211-MS8-610
SW, part no 16211-MR1-710
Rear mudguard extension.
For FI and SW markets.
Info taken from:
Honda XRV650 Shop Manual, Honda Motor Co LTD, 1988, Tokyo, Japan.
Honda XRV650 Shop Manual, Honda Motor Co LTD, 1989, Tokyo, Japan.
Honda XRV650 Set-up Instructions, Honda Motor Co LTD, 1988, Tokyo, Japan.
